Pipe Thread Rolling Machine – 3 Roll Hydraulic

Hydraulic Thread Rolling Machines 3 Roll by Industrial Machinery Corporation

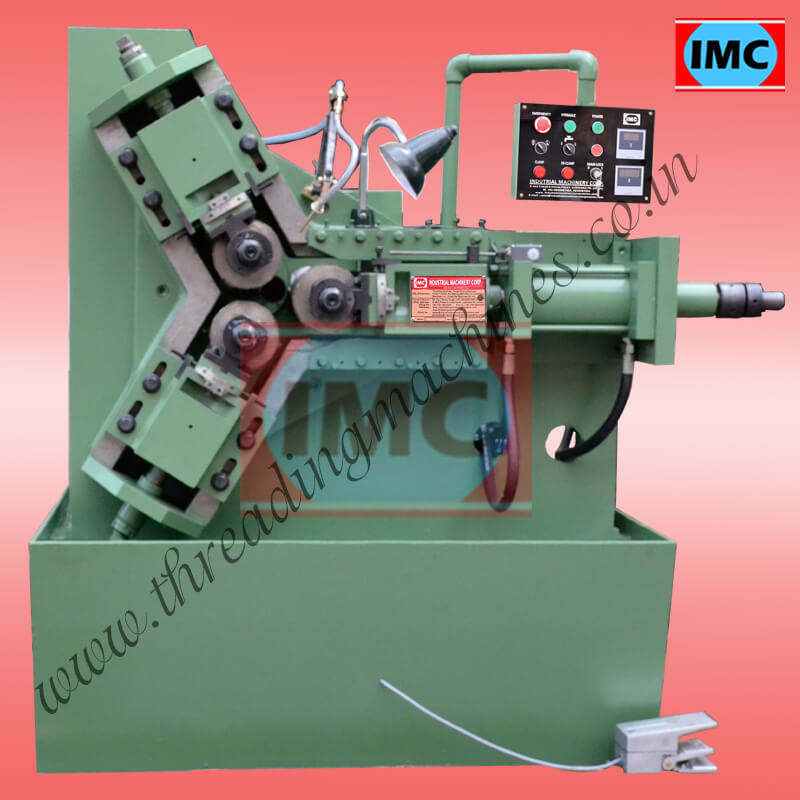

Hydraulic Thread Rolling Machines 3 Roll by Industrial Machinery Corporation thumbnail

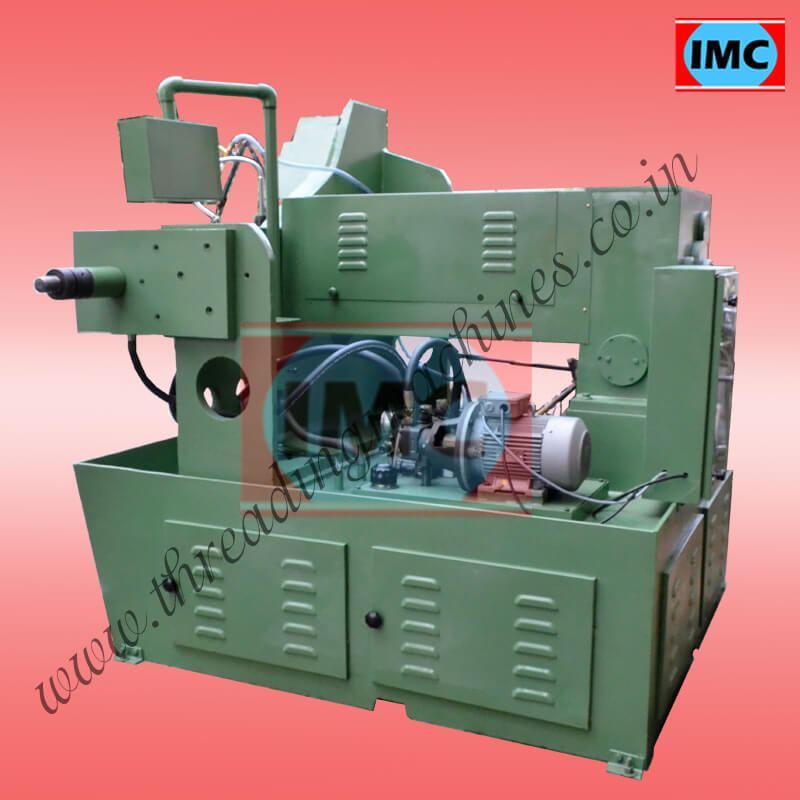

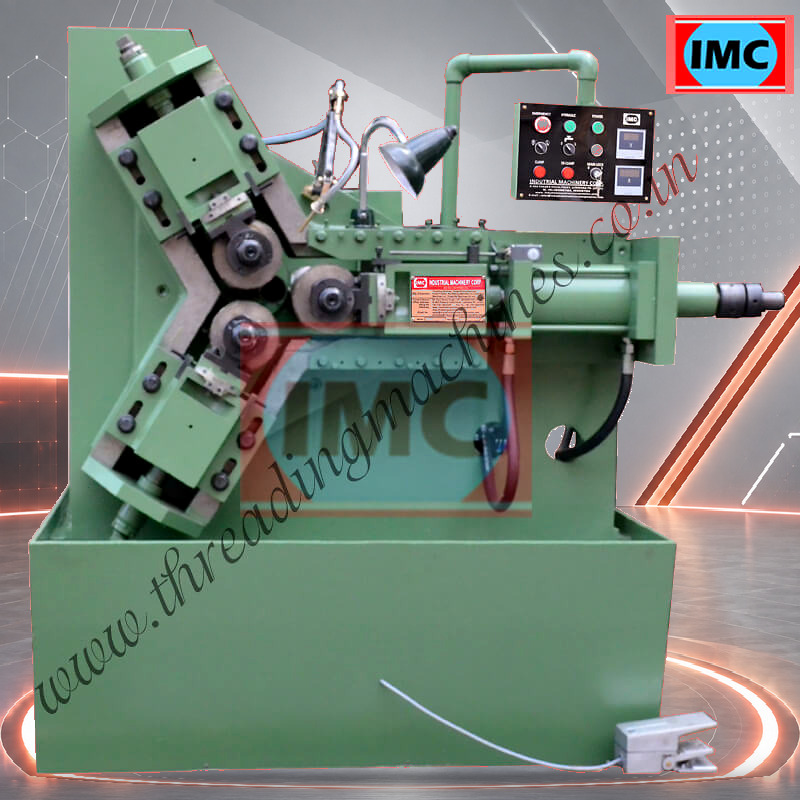

Hydraulic Thread Rolling Machines 3 Roll by Industrial Machinery Corporation additional view 1

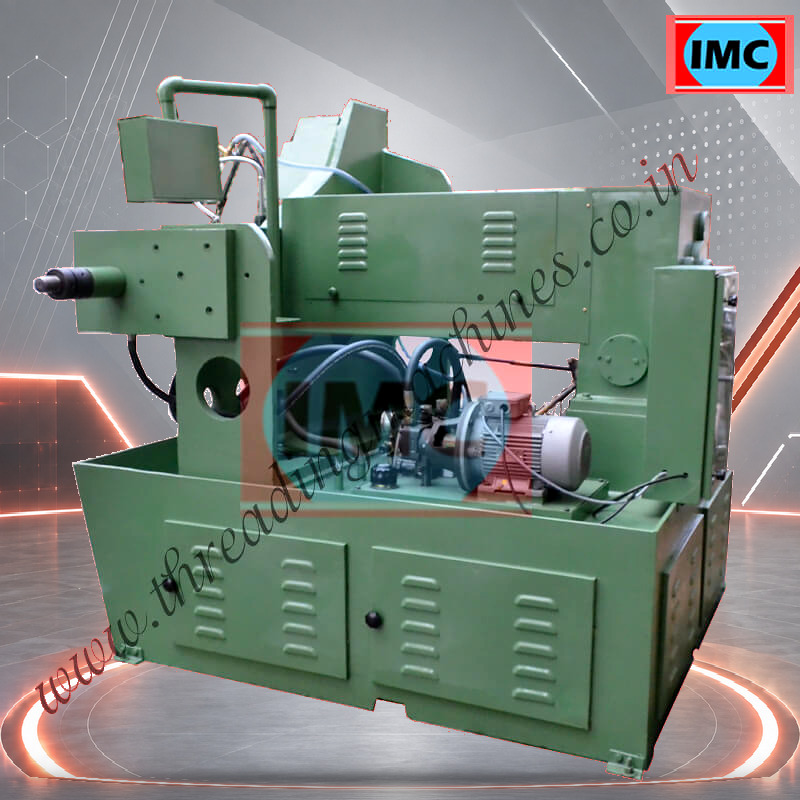

Hydraulic Thread Rolling Machines 3 Roll by Industrial Machinery Corporation additional view 2

Review Pipe Thread Rolling Machine for your component and the required production operation.

Define the component to be produced

This equipment is selected to form external threads on suitable pipe workpieces with a matched three-roll hydraulic configuration. A manufacturing enquiry needs the actual finished-part drawing and the condition of the starting material. List pipe diameter, wall thickness, material, thread drawing and desired length. Where several components are planned, separate their quantities and dimensions so that a model suitable for one item is not assumed to cover the entire range.

Match the process and tooling

Ask IMC to review three-roll dies, mounting fit, pipe support and the intended feed arrangement for the component schedule. Clarify which tools are included for the first job and which are needed for a changeover. Pipe wall section and material suitability are important; outside diameter by itself does not establish rolling compatibility. Preparation, material handling and any subsequent operation should appear in the production plan alongside this process.

Establish acceptance before ordering

A representative component should be checked for thread profile, mating-part fit and pipe condition after forming. State the drawing requirements and how the result will be assessed. Use the published specifications to shortlist the model, then send the material and batch information with your chosen quotation options. Agree the supplied tooling, power requirements and support scope in the written offer.

Information to send with your enquiry

Pipe diameter
Wall thickness
Material
Thread drawing and desired length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Thread Type

Maximum Thread Length Require

Maximum Diameter of the job

Purchase

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Hydraulic Thread Rolling Machine 3 Roll Type

Thread Rolling Machine Three Roll

Scaffolding Prop Sleeve Pipe Thread Rolling Machine | High Speed Heavy Duty Threading

Scaffolding Pipe Thread Rolling Machine

Pipe Thread Rolling Machine for Scaffolding Prop Sleeves | Industrial Machines

Scaffolding Prop Thread Rolling Machine

Scaffolding Pipe Thread Rolling Machine | High-Precision and Durable Solutions by IMC

Three-Roll Thread Rolling Machine | High-Precision Solutions by IMC

Advanced Thread Rolling Machine | Precision and Durability by IMC

Bar , Rod Thread Rolling Machine Samples | Precision Thread Rolling Demonstrations #ThreadSamples

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We stepped into the business of industrial machine manufacturing in the year 2001 and since then we have been engaged in designing and supplying all our clients and buyers with the best industrial machines. The machines that we are manufacturing have been acknowledged by the entire market [national and international] for being the best in the niche. It is all the blessings of the supreme lord that in a very short span of time, we have gained huge success, fame, and name. In all these years of being in business we have gained all the required experience and expertise and using all of this, we are capable of developing and manufacturing a wide range of industrial machines and products. Among these products related to industrial machinery is the scaffolding pipe thread rolling machine which we have developed using knowledge, expertise, and skills. Our manufacturing unit based in Ludhiana is one of the technically most advanced units to manufacture industrial machinery. This unit has some of the most advanced machines, the latest technologies, the newest robotic systems, and manpower having years and years of experience in manufacturing not only the Scaffolding Pipe Thread Rolling Machine but all our industrial machines. ?

Our research and development wing based in Ludhiana is engaged 24 hours a day and seven days a week in researching new techniques and tools to improve the quality of not only the scaffolding pipe thread rolling machine but all our machines. As far as our scaffolding pipe thread rolling machine is concerned, our continuous effort lies in supplying all the buyers with the latest and most modern machine which is ready to perform at any stage. The scaffolding pipe thread rolling machines that we make are made under the strict supervision of the quality supervision team which makes sure that the standard and quality are maintained at every step of production. The raw material coming in is checked for quality and consistency, and the design is designed by expert designers who have decades of experience in the business. We try our best to supply Scaffolding Pipe Thread Rolling Machine as per the customization requirement and technical specifications required by the client. Due to all these qualities and for the most accurate and precise results supplier, all our machines including the Scaffolding Pipe Thread Rolling Machine are known around the world.??Following are the names of cuts that a scaffolding pipe thread rolling manufactured at our Ludhiana-based unit can make using different chasers:

• Matric

• BSP

• BSPT

• NPT

• UNF

• UNC

• BSW

• Acme Threads

• B.S.F

Let’s have a look at the names of various parts of a scaffolding pipe thread rolling machine that we design at our manufacturing base located in Ludhiana and supply to all our worldwide clients:

• Base Head Stock

• Saddle

• Bed or Pillar Type

• Clamping Vice

• Die Head.

Here are the detailed descriptions of the various parts of our scaffolding pipe thread rolling machine:

• Headstock: it is basically a geared head-box made from supreme quality casting which gives support to spindle bearing.

• The bed: the bed is a platform resting on two pillars that are made of nicely treated steel and are duly hard chrome plated.

• Saddle: saddle is installed on two steel rods very accurately. Its main task is to precisely and effortlessly move the headstock alignment.

• Apron: the apron mobilizes the saddle on the steel rack and pinion fixtures. The gears of an apron are made using finest stainless steel.

• Vice jaws: the vice jaw is made up of alloyed stainless steel and a finely aligned and installed on the saddle. Vice jaws are kept under direction using a screw on the saddle and vice jaws are heat treated.

Hydraulic Thread Rolling Machine

Model		IMC-3R-25	IMC-3R-50	IMC-3R-75
Work Range	Out Side Diameter Thread Length in Feed Thread Length Through Feed	(8-25 MM) (1/2"- 1") (38 MM) (1.1/2") (Indefinite) (Indefinite)	(25-50 MM) (1"- 2") (50 MM) (2") (Indefinite) (Indefinite)	(32-75 MM) (1.1/4"- 3") (75 MM) (3") (Indefinite)(Indefinite)
Roll Dies	Max. Out Side Dia. Max. Inside Dia Spindle Box	140 60 40	140 60 40	170 80 54
Motor	For Roll Spindle	3 H.P.	3 H.P.	7.5 H.P.
3 Phase AC	For Hydraulic System	1 H.P.	1 H.P.	3 H.P.
Coolant Pump		0.1 H.P.	0.1 H.P.	0.1 H.P.

Circular Thread Rolling Dies

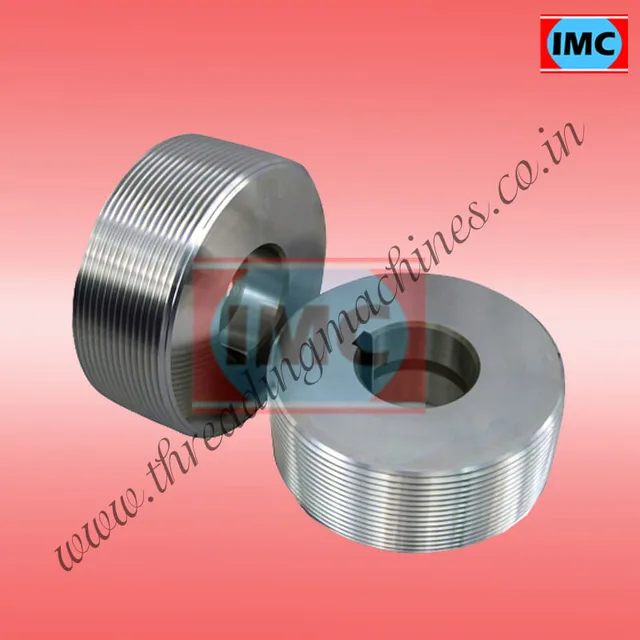

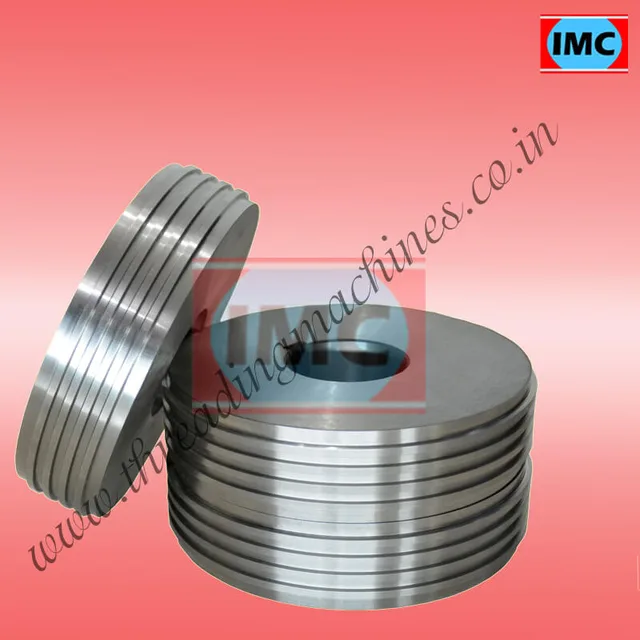

Thread Rolling Dies 3 Roll Thread Rolling Dies 2 Roll

IMC Thread rolls are used on thread rolling machine. These rolls comes in set of two and three pieces manufactured from D2,D3 and M2 Material to suit any type of machine. For any specification of thread such as ISO Metric Din Whiteworhth America, Trapozodical, Acme, etc

Frequently Asked Questions About Hydraulic Thread Rolling Machines 3 Roll

What should a three-roll thread rolling enquiry include?

Identify the component, outside diameter, wall thickness where relevant, material condition and finished thread drawing. Discuss how the three rolls support the part and whether the proposed feeding arrangement suits the required thread length.

Which details help IMC recommend the hydraulic thread rolling machines 3 roll configuration?

Include outside diameter, tube wall and thread drawing, your material specification and required output. Describe how the workpiece arrives at this operation and where it goes next, so tooling, handling and any accessories can be discussed as part of the proposed setup.

How can I request this hydraulic thread rolling machines 3 roll with the options I need?

Use the options listed on this product page and add the required quantity to your Quote List. In the final enquiry, identify outside diameter, tube wall and thread drawing, destination and electrical supply. Any tooling, installation or spare-part requirement should be stated explicitly for inclusion in the offer.
