Industrial Machinery Corporation was formed in the year 2001 and in just a span of 10 years; it has become a much-respected name in the field of the industrial machine manufacturing world. Since our formation in 2001, we have been busy working with full zeal and enthusiasm to retain and sustain the respect we have gained by designing and exporting only the finest quality machines to our clients ranging from not only India but abroad as well. Through the experience we have gained, we are now capable of designing and manufacturing a big range of machines and one such machines developed by us at our manufacturing base in Ludhiana is the PVC pipe threading machines. A PVC Pipe Threading Machines made at our manufacturing unit based at Ludhiana is one of the most famous machines and has its name for creating most accurate and precise threads on PVC pipes. When an order comes, we make sure that the finest quality is maintained at every step right from designing these machines on paper to getting raw material to building it to packing and sending it to our buyers. All the raw material used for manufacturing these machines is derived from the best of resources and prior to getting into use, all the raw material is checked thoroughly by the quality supervision team for any sort of defect or flaw. If there is even a hint of defect fond, the raw material is declared unfit for use. Our PVC Pipe Threading Machine is a specially programmed and better quality lathe that has the capacity to thread a PVC Pipe ranging from 50 M.M to 250 M.M for 3 meters or a 4-meter pipe. There is a newly designed collets system which makes that this machine assists the user in quickly uploading and downloading PVC pipes giving place to the next slot of pipe for threading.
The best part of this PVC pipe threading machines which makes this machines different and special from other PVC pipe threading machines is that it is fitted with an advanced double-sided paddle the best part of this double-sided saddle is that it allows two workers to work on it simultaneously in one time which means this machines can produce twice the result in one time. The two users can work on PVC machines and thread PVC pipes from inside and outside in a single time. This machine has a hydraulic cylinder lead screw box nut engaging, one hydraulic pipe clamping cylinder, and one hydraulic cylinder for die-head opening with micro switches with automation with a control panel. With all these power-packed features, there is an unconditional guarantee that this machine is made to perform at the best of its capability to produce precise and accurate pipe threading results. Our PVC pipe threading machines are designed and customized as per the prerequisites and specifications mentioned by the clients. We make every possible effort to make our PVC pipe threading machines as comfortable as possible.
Mentioned below are the names of a few cuts that our PVC pipe threading machine can cut:
• BSP
• MATRIX
• BSPT
• NPT
• UNF
• UNC
• BSW
• Acme Threads
Listed below are the names of various parts of PVC pipe threading machine that we manufacture at our manufacturing base located in Ludhiana:
• Base
• Head Stock
• Saddle

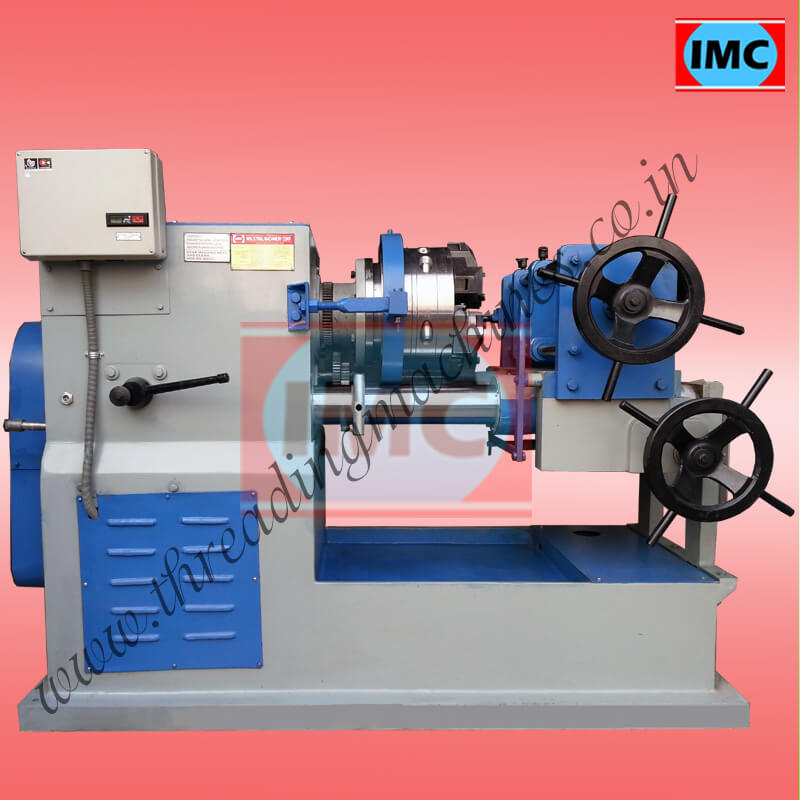

• Pillar Or Bed Type Clamping Vice
• Die Head

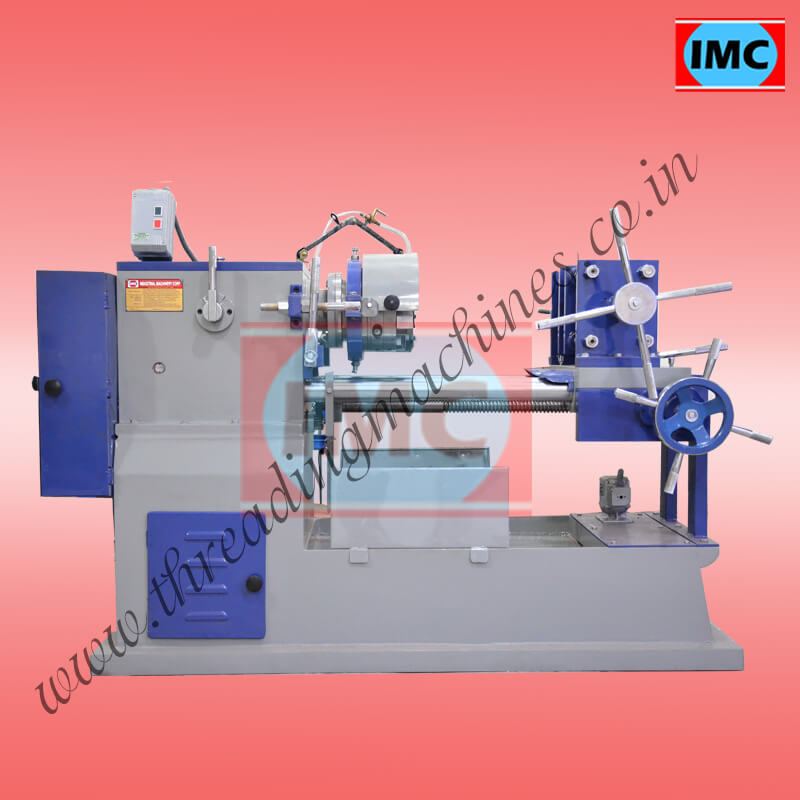

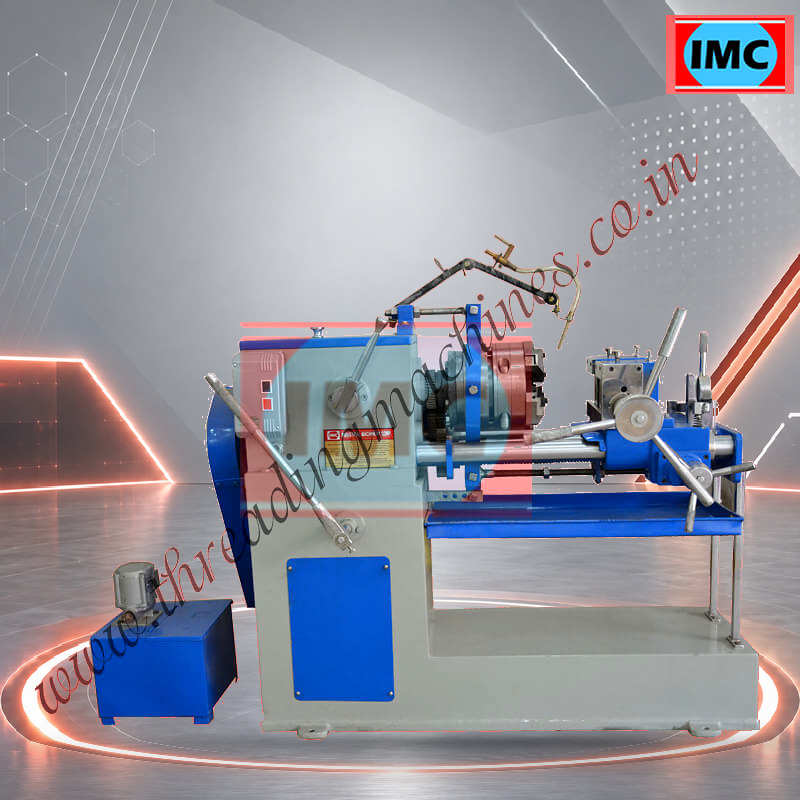

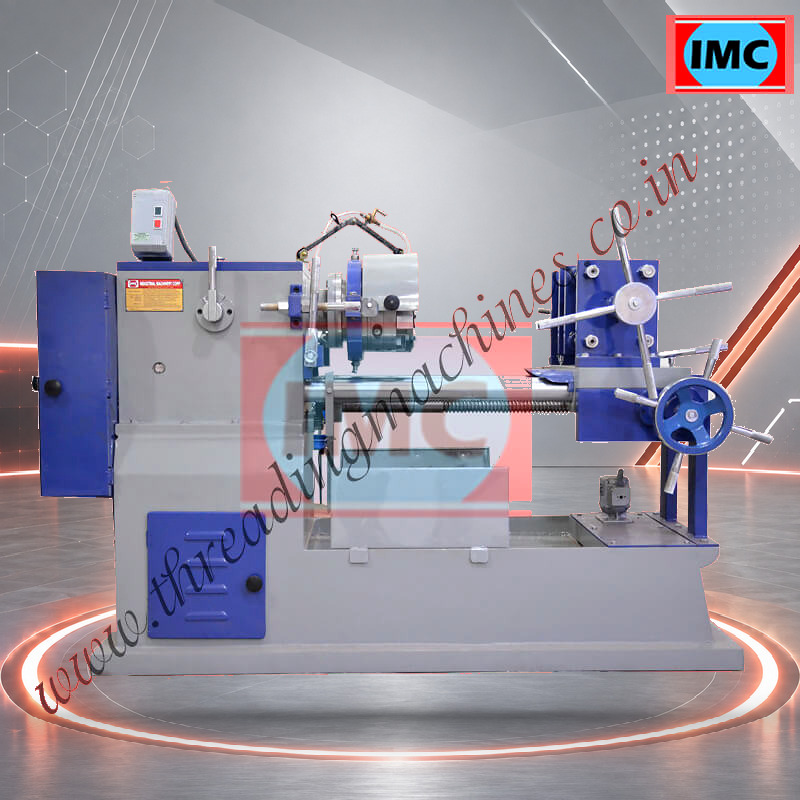

PVC Pipe Threading Machine
Model | 3/8" to 2" (10MM to 50MM)
| 1/2" to 2.1/2" (12MM to 65MM)
| 1" to 4" (25MM to 100MM)
| 2.½" to 6" (65MM to 150MM)
| 4" to 8" (100MM to 200MM)
| 8" to 10" (200MM to 250MM)
|
Saddle Movement | 10"- 12" | 16" | 10“ - 12" | 8" | 8" | 8" |
Spindle Speed Range | 127-180 | 60-90-120 | 40-75-115 | 25-50 | 25-50 | 10-20-30 |
Number of Spindle Speed | 2 | 3 | 3 | 2 | 2 | 3 |
Threading Capacity | 3/8" to 2" | 1/2" to 2.1/2"
| 1 to 4" | 2.1/2" to 6" | 4" to 8" | 8" to 10" |
Production per Hour | 100-120 | 70-90 | 35-40 | 20-25 | 15-20 | 15-20 |
H.P. Required | 3 H.P. | 7.5 H.P. | 12.5 H.P. 960 | 15 H.P. 960 | 20 H.P. 960 | 30 H.P. 960 |
Lead Screw | Provided | Provided | Provided | Provided | Provided | Provided |
Weight (KG) Approx. | 550 | 990 | 1600 | 1900 | 2500
| 5000
|
Tangential Chaser
IMC Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipments, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.
IMC Chaser are interchangeable. If one Pc. Of a chaser, set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
