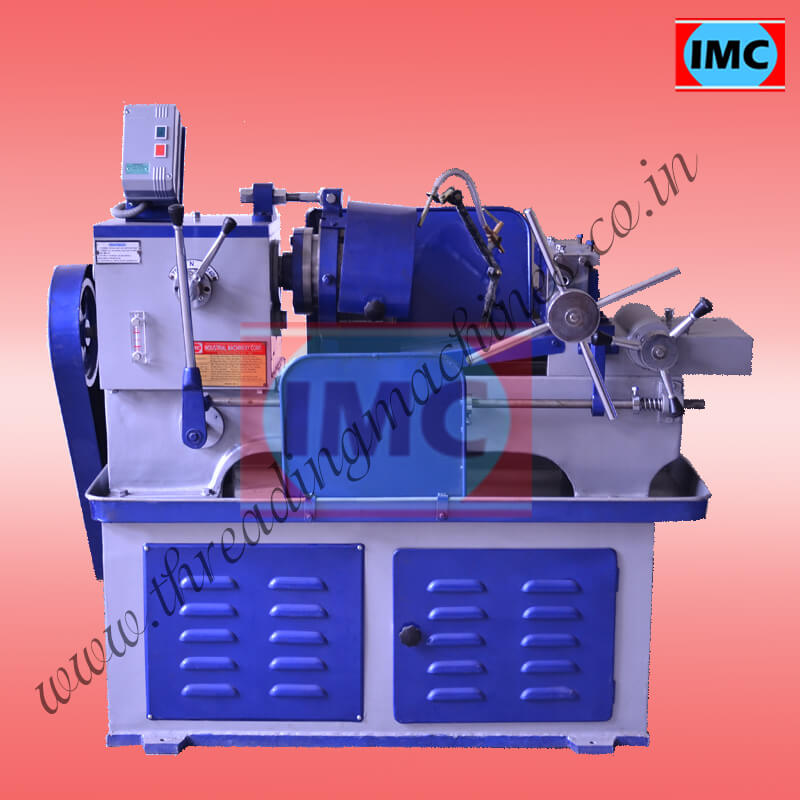

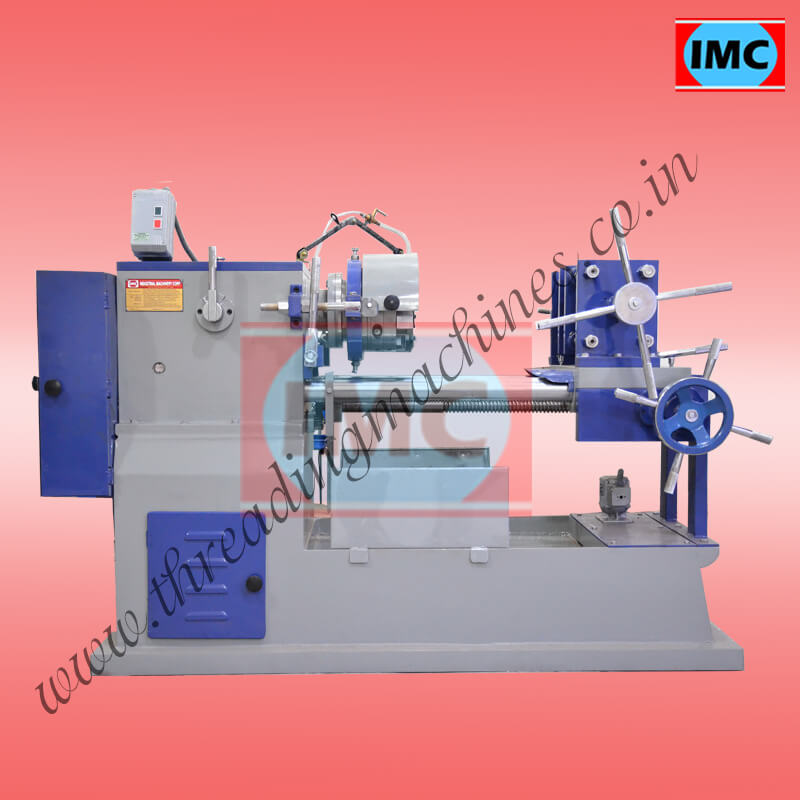

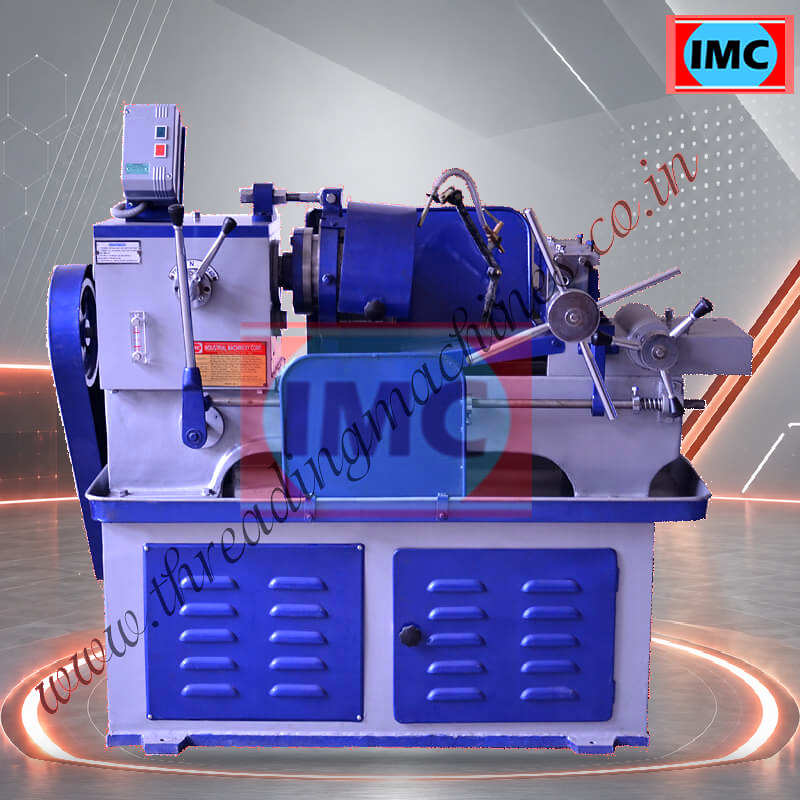

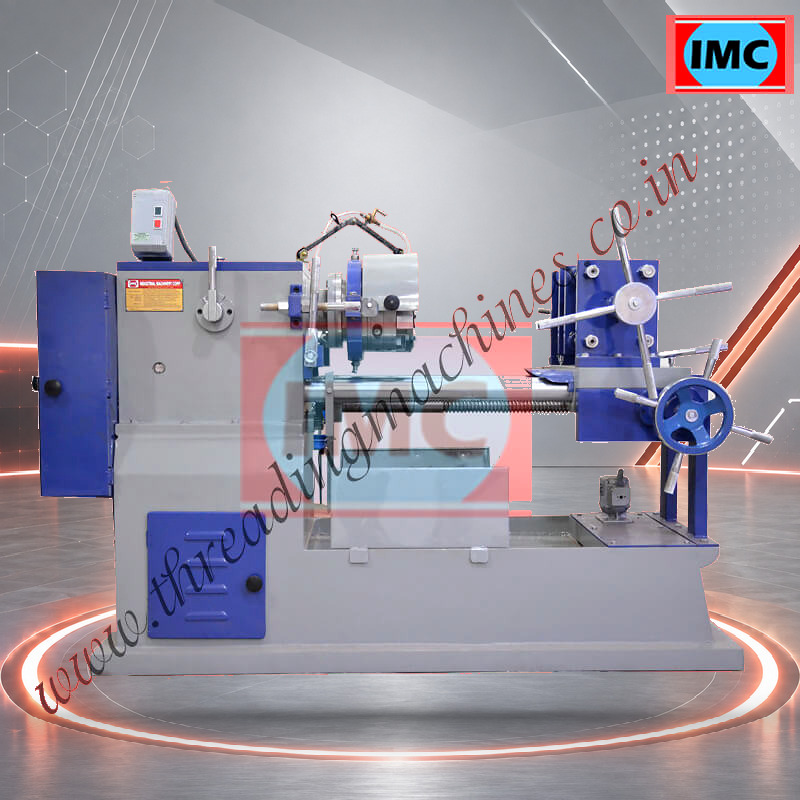

Scaffolding Pipe Thread Cutting Machine
Scaffolding Pipe Thread Cutting Machine Scaffolding Pipe Thread Cutting Machine Scaffolding Pipe Thread Cutting Machine

In a very short span of 12 years, industrial machinery corporation has become the leading and technically most advanced name in the field of industrial machinery manufacturing. With one of our products named scaffolding pipe threading machine, our name has been 7 starred as our scaffolding pipe threading machine is tagged with the most upgraded and modern machine to be used for pipe threading. Since our formation only, we have been using the best staff and the newest of machines and software to manufacture our machines. All our machines, not just the scaffolding pipe threading machine are designed by internationally acclaimed designers and this makes sure that all our machines are firstly designed and then manufactured as per international trends and needs. There is a quality supervision team working with us whose main task is to make sure on every step that the raw material used in the manufacturing process is of the finest quality, the latest technology is used, and no negotiation is made to set its meticulousness. Following are the technical specifications of the scaffolding pipe thread cutting machine manufactured and exported by the industrial machinery corporation at their manufacturing unit in Ludhiana:

VIEW SPECIFICATIONS

Tags

Threading Machine Manufacturer, Scaffolding Pipe Threading Machine, Industrial machinery Manufacturer in India, Electric Pipe Threading Machine at Best Price in India, automatic pipe threading machine, IMC Automatic Scaffolding Pipe Thread Machine

Available Options


Specifications

In a very short span of 12 years, industrial machinery corporation has become the leading and technically most advanced name in the field of industrial machinery manufacturing. With one of our products named scaffolding pipe threading machine, our name has been 7 starred as our scaffolding pipe threading machine is tagged with the most upgraded and modern machine to be used for pipe threading. Since our formation only, we have been using the best staff and the newest machines and software to manufacture our machines. All our machines, not just the scaffolding pipe threading machine are designed by internationally acclaimed designers and this makes sure that all our machines are firstly designed and then manufactured as per international trends and needs. There is a quality supervision team working with us whose main task is to make sure at every step that the raw material used in the manufacturing process is of the finest quality, the latest technology is used, and no negotiation is made to set its meticulousness. Following are the technical specifications of the scaffolding pipe threading machine manufactured and exported by the industrial machinery corporation at their manufacturing unit in Ludhiana:

• Rolling Force-20 Tons

• Max Job Diameter-65MM

• Maximum Width of Rolls-130MM

• Roll Diameter-170MM

• Roll Shaft Diameter-54 MM

• Swivel Angle-+/- 10Degrees

• Height from Shaft Center to Job Support-150 MM

• Total Power-13.5 Hp

• LengthXWidthXHeight-1000x1500x2000      MM

• Total machine Weight-2500 kilograms

The scaffolding pipe thread cutting machine is used for cutting external threads on pipes by following the theory of chasing method. This machine uses HSS tangential chasers as cutters and in the chasing method, the pipe remains stationary whereas the die head rotates. Following are the types of cuts that a scaffolding pipe thread cutting machine can cut using the HSS Tangential chasers, but the variety depends upon the type of chaser that is being used in the machine at that time:

• Matric

• BSP

• BSPT

• NPT

• UNF

• UNC

• BSW

• Acme Threads

• B.S.F

Listed below are the various parts of the scaffolding machine that are assembled with perfection for the best results:

• Base Head Stock

• Saddle

• Bed or Pillar Type

• Clamping Vice

• Die Head.

Let’s have a brief look at these parts as to what are their specialties: The headstock is a heavy-duty geared head box made up using the best quality cast iron. This is fitted to give support to spindle bearings and has three extra heavy-duty bearings. The bed is a type of platform fixed on two pillars made of the finest quality steel. The bed is made up of duly finished hard chrome plated steel. The saddle is fitted on two steel pillars very precisely to make sure that the headstock alignment runs very accurately and precisely. The apron is used to give movement to the saddle and the gears fixed in the apron are all made up of premium-quality steel. Vice jaws are made of steel drawn from the best resources and are fitted on the saddle. Vice jaws are well-aligned with the headstock and are heat-treated. The movements of these vice jaws are controlled by the screw present on the saddle. Listed below are the ranges in which our scaffolding pipe threading machine is capable of working with efficiency and ease:

• 1/4" to 1" do/-

• 3/8" to 1.12" do/-

• 1/2" to 2.1/2" do/-

 Scaffolding Pipe Threading Machine

Model

1/2" to 2.1/2"

(12MM to 65MM)

(Bed Type)

1/2" to 2.1/2"

(12MM to 65MM)

(Pillar type)

Saddle Movement24"16"
Spindle Speed Range45-9060-90-120
Number of Spindle Speed23
Threading Capacity1/2" to 2.1/2"1/2" to 2.1/2"
Production per Hour25-4035-60
H.P. Required7.5 H.P.7.5 H.P.
Lead ScrewOptionalOptional
Weight (KG) Approx.9901100


Tangential Chaser

IMC Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipment, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. The same No. pc. The other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.
